radis.tools.database module¶
Implements a spectrum database SpecDatabase
class to manage them all.
It basically manages a list of Spectrum JSON files, adding a Pandas dataframe structure on top to serve as an efficient index to visualize the spectra input conditions, and slice through the Dataframe with easy queries
Examples
See and get objects from database:
from radis.tools import SpecDatabase
db = SpecDatabase(r"path/to/database") # create or loads database
db.update() # in case something changed (like a file was added manually)
db.see(['Tvib', 'Trot']) # nice print in console
s = db.get('Tvib==3000 & Trot==1500')[0] # get all spectra that fit conditions
db.add(s) # update database (and raise error because duplicate!)
Note that SpectrumFactory
can be configured to
automatically look-up and update a database when spectra are calculated.
An example of script to update all spectra conditions in a database (ex: when a condition was added afterwards to the Spectrum class):
# Example: add the 'medium' key in conditions
db = "database_CO"
for f in os.listdir(db):
if not f.endswith('.spec'): continue
s = load_spec(join(db, f))
s.conditions['medium'] = 'vacuum'
s.store(join(db,f), if_exists_then='replace')
You can see more examples on the Spectrum Database section of the website.
- class SpecDatabase(path='.', filt='.spec', add_info=None, add_date='%Y%m%d', verbose=True, binary=True, nJobs=-2, batch_size='auto', lazy_loading=True, update_register_only=False)[source]¶
Bases:
SpecList
A Spectrum Database class to manage them all.
It basically manages a list of Spectrum JSON files, adding a Pandas dataframe structure on top to serve as an efficient index to visualize the spectra input conditions, and slice through the Dataframe with easy queries
Similar to
SpecList
, but associated and synchronized with a folder- Parameters
path (str) – a folder to initialize the database
filt (str) – only consider files ending with
filt
. Default.spec
binary (boolean) – if
True
, open Spectrum files as binary files. IfFalse
and it fails, try as binary file anyway. DefaultFalse
.lazy_loading (bool``) – If
True
, load only the data from the summary csv file and the spectra will be loaded when accessed by the get functions. IfFalse
, load all the spectrum files. IfTrue
and the summary .csv file does not exist, load all spectra
- Other Parameters
*input for :class:`~joblib.parallel.Parallel` loading of database*
nJobs (int) – Number of processors to use to load a database (usefull for big databases). BE CAREFULL, no check is done on processor use prior to the execution ! Default
-2
: use all but 1 processors. Use1
for single processor.batch_size (int or
'auto'
) – The number of atomic tasks to dispatch at once to each worker. When individual evaluations are very fast, dispatching calls to workers can be slower than sequential computation because of the overhead. Batching fast computations together can mitigate this. Default:'auto'
More information in :class:`joblib.parallel.Parallel`
Examples
>>> db = SpecDatabase(r"path/to/database") # create or loads database >>> db.update() # in case something changed >>> db.see(['Tvib', 'Trot']) # nice print in console >>> s = db.get('Tvib==3000')[0] # get a Spectrum back >>> db.add(s) # update database (and raise error because duplicate!)
Note that
SpectrumFactory
can be configured to automatically look-up and update a database when spectra are calculated.The function to auto retrieve a Spectrum from database on calculation time is a method of DatabankLoader class
You can see more examples on the Spectrum Database section of the website.
See also
load_spec()
,store()
,Methods
,get()
,get_closest()
,get_unique()
,Methods
,see()
,update()
,add()
,compress_to()
,find_duplicates()
,Compare
,fit_spectrum()
Spectrum Database- add(spectrum: Spectrum, store_name=None, if_exists_then='increment', **kwargs)[source]¶
Add Spectrum to database, whether it’s a
Spectrum
object or a file that stores one. Check it’s not in database already.- Parameters
spectrum (
Spectrum
object, or path to a .spec file (str
)) – if aSpectrum
object: stores it in the database (using thestore()
method), then adds the file to the database folder. if a path to a file (str
): first copy the file to the database folder, then loads the copied file to the database.- Other Parameters
store_name (
str
, orNone
) – name of the file where the spectrum will be stored. IfNone
, name is generated automatically from the Spectrum conditions (seeadd_info=
andif_exists_then=
)if_exists_then (
'increment'
,'replace'
,'error'
,'ignore'
) – what to do if file already exists. If'increment'
an incremental digit is added. If'replace'
file is replaced (!). If'ignore'
the Spectrum is not added to the database and no file is created. If'error'
(or anything else) an error is raised. Default'increment'
.**kwargs (**dict) – extra parameters used in the case where spectrum is a file and a .spec object has to be created (useless if
spectrum
is a file already). kwargs are forwarded to Spectrum.store() method. See thestore()
method for more information.Note
Other
store()
parameters can be given as kwargs arguments. See below :compress (0, 1, 2) – if
True
or 1, save the spectrum in a compressed formif 2, removes all quantities that can be regenerated with
update()
, e.g, transmittance if abscoeff and path length are given, radiance if emisscoeff and abscoeff are given in non-optically thin case, etc. If not given, use the value ofSpecDatabase.binary
The performances are usually better if compress = 2. See https://github.com/radis/radis/issues/84.add_info (list) – append these parameters and their values if they are in conditions example:
nameafter = ['Tvib', 'Trot']
discard (list of str) – parameters to exclude. To save some memory for instance Default
['lines', 'populations']
: retrieved Spectrum will loose theline_survey()
andplot_populations()
methods (but it saves a ton of memory!).
Examples
from radis.tools import SpecDatabase db = SpecDatabase(r"path/to/database") # create or loads database db.add(s, discard=['populations'])
You can see more examples on the Spectrum Database section of the website.
Spectrum DatabaseSee also
- compress_to(new_folder, compress=True, if_exists_then='error')[source]¶
Saves the Database in a new folder with all Spectrum objects under compressed (binary) format. Read/write is much faster. After the operation, a new database should be initialized in the new_folder to access the new Spectrum.
- Parameters
new_folder (str) – folder where to store the compressed SpecDatabase. If doesn’t exist, it is created.
compress (boolean, or 2) – if
True
, saves under binary format. Faster and takes less space. If2
, additionaly remove all redundant quantities.if_exists_then (
'increment'
,'replace'
,'error'
,'ignore'
) – what to do if file already exists. If'increment'
an incremental digit is added. If'replace'
file is replaced (!). If'ignore'
the Spectrum is not added to the database and no file is created. If'error'
(or anything else) an error is raised. Default'error'
.
See also
- find_duplicates(columns=None)[source]¶
Find spectra with same conditions. The first duplicated spectrum will be
'False'
, the following will be'True'
(see .duplicated()).- Parameters
columns (list, or
None
) – columns to find duplicates on. IfNone
, use all conditions.
Examples
db.find_duplicates(columns={'x_e', 'x_N_II'}) Out[34]: file 20180710_101.spec True 20180710_103.spec True dtype: bool
You can see more examples in the Spectrum Database section
- fit_spectrum(s_exp, residual=None, normalize=False, normalize_how='max', conditions='', **kwconditions)[source]¶
Returns the Spectrum in the database that has the lowest residual with
s_exp
.- Parameters
s_exp (Spectrum) –
Spectrum
to fit (typically: experimental spectrum)- Other Parameters
residual (func, or
None
) – which residual function to use. IfNone
, useget_residual()
with optionignore_nan=True
and optionsnormalize
andnormalize_how
as defined by the user.get_residual
should have the form:lambda s_exp, s, normalize: func(s_exp, s, normalize=normalize)
where the output is a float. Default
None
conditions, **kwconditions (str, **dict) – restrain fitting to only Spectrum that match the given conditions in the database. See
get()
for more information.normalize (bool, or Tuple) – see
get_residual()
normalize_how (‘max’, ‘area’) – see
get_residual()
- Returns
s_best – closest Spectrum to
s_exp
- Return type
Examples
Using a customized residual function (below: to get the transmittance):
from radis import get_residual db = SpecDatabase('...') db.fit_spectrum(s_exp, get_residual=lambda s_exp, s: get_residual(s_exp, s, var='transmittance'))
You can see more examples on the Spectrum Database section More advanced tools for interactive fitting of multi-dimensional, multi-slabs spectra can be found in
fitroom
.See also
- interpolate(**kwconditions)[source]¶
Interpolate existing spectra from the database to generate a new spectrum with conditions kwargs
Examples
db.interpolate(Tgas=300, mole_fraction=0.3)
- to_dict()[source]¶
Returns all Spectra in database under a dictionary, indexed by file.
- Returns
out – {path : Spectrum object} dictionary
- Return type
dict
Note
SpecList.items().values()
is equivalent toSpecList.get()
- update(force_reload=False, filt='.spec', update_register_only=False)[source]¶
Reloads database, updates internal index structure and export it in
<database>.csv
.- Parameters
force_reload (boolean) – if
True
, reloads files already in database. DefaultFalse
filt (str) – only consider files ending with
filt
. Default.spec
- Other Parameters
update_register_only (bool) – if
True
, load files and update csv but do not keep the Spectrum in memory. DefaultFalse
Notes
Can be loaded in parallel using joblib by setting the
nJobs
andbatch_size
attributes ofSpecDatabase
. Seejoblib.parallel.Parallel
for information on the arguments
- class SpecList(*spectra, **kwargs)[source]¶
Bases:
object
- create_fname_grid(conditions)[source]¶
Create a 2D-grid of filenames for the list of parameters
conditions
Examples
db.create_fname_grid(["Tgas", "pressure_mbar"])
See also
- get(conditions='', **kwconditions)[source]¶
Returns a list of spectra that match given conditions.
- Parameters
database (list of Spectrum objects) – the database
conditions (str) –
a list of conditions. Example:
db.get('Tvib==3000 & Trot==1500')
kwconditions (dict) –
an unfolded dict of conditions. Example:
db.get(Tvib=3000, Trot=1500)
- Other Parameters
inplace (
bool
) – if True, return the actual object in the database. Else, return copies. DefaultFalse
verbose (
bool
) – more blablascale_if_possible (
bool
) – ifTrue
, spectrum is scaled for parameters that can be computed directly from spectroscopic quantities (e.g:'path_length'
,'molar_fraction'
). DefaultFalse
- Returns
out
- Return type
list of Spectrum
Examples
spec_list = db.get('Tvib==3000 & Trot==1300')
or:
spec_list = db.get(Tvib=3000, Trot=1300)
See also
get_unique()
,get_closest()
, ;py:meth:interpolate
,items()
- get_closest(scale_if_possible=True, **kwconditions)[source]¶
Returns the Spectra in the database that is the closest to the input conditions.
Note that for non-numeric values only equals should be given. To calculate the distance all numeric values are scaled by their mean value in the database
- Parameters
kwconditions (named arguments) – i.e:
Tgas=300, path_length=1.5
scale_if_possible (boolean) – if
True
, spectrum is scaled for parameters that can be computed directly from spectroscopic quantities (e.g:'path_length'
,'molar_fraction'
). DefaultTrue
- Other Parameters
verbose (boolean) – print messages. Default
True
inplace (boolean) – if
True
, returns the actual object in database. Else, return a copy. DefaultFalse
See also
get()
,get_unique()
, ;py:meth:interpolate
- get_items(condition)[source]¶
Returns all Spectra in database under a dictionary; indexed by
condition
Requires that
condition
is unique- Parameters
condition (str) – condition. Ex:
Trot
- Returns
out – {condition:Spectrum}
- Return type
dict
Examples
db.get_items("Tgas")
See also
- get_unique(conditions='', scale_if_possible=False, **kwconditions)[source]¶
Returns a spectrum that match given conditions.
Raises an error if the spectrum is not unique.
See also
get()
,get_closest()
, ;py:meth:interpolate
- items()[source]¶
Iterate over all
Spectrum
in database.Examples
Print name of all Spectra in dictionary:
db = SpecDatabase('.') for path, s in db.items(): print(path, s.name)
Update all spectra in current folder with a new condition (‘author’):
db = SpecDatabase('.') for path, s in db.items(): s.conditions['author'] = 'me' s.store(path, if_exists_then='replace')
- map(function)[source]¶
Apply
function
to all Spectra in database.Examples
Add a missing parameter:
db = SpecDatabase('...') def add_condition(s): s.conditions['exp_run'] = 1 return s db.map(add_condition)
Note
spectra are not changed on disk. If you want to update on disk you may want to combine map() followed by
compress_to()
Example
# See length of all spectra : db.map(lambda s: print(len(s))) # Resample all on spectrum of minimum wstep s_wstep_min = db.get(wstep=float(db.see("wstep").min()))[0] db.map(lambda s: s.resample(s_wstep_min)) # Export to a new database: db.compress_to(db.path+'_interp')
- plot(nfig=None, legend=True, **kwargs)[source]¶
Plot all spectra in database.
- Parameters
nfig (str, or int, or
None
) – figure to plot on. DefaultNone
: creates one- Other Parameters
kwargs (dict) – parameters forwarded to the Spectrum
plot()
methodlegend (bool) – if
True
, plot legend.
- Returns
fig, ax – figure
- Return type
matplotlib figure and ax
Examples
Plot all spectra in a folder:
db = SpecDatabase('my_folder') db.plot(wunit='nm')
See also
Spectrum

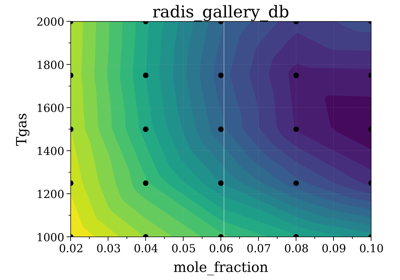

- plot_cond(cond_x, cond_y, z_value=None, nfig=None)[source]¶
Plot database conditions available:
- Parameters
cond_x, cond_y (str) – columns (conditions) of database.
z_value (array, or None) – if not None, colors the 2D map with z_value. z_value is ordered so that z_value[i] corresponds to row[i] in database.
Examples
- ::
>>> db.plot(Tvib, Trot) # plot all points calculated
>>> db.plot(Tvib, Trot, residual) # where residual is calculated by a fitting # procedure...
Spectrum Database
- see(columns=None, *args)[source]¶
Shows Spectrum database with all conditions (
columns=None
) or specific conditions.- Parameters
columns (str, list of str, or None) – shows the conditions value for all cases in database. If None, all conditions are shown. Default
None
e.g.:db.see(['Tvib', 'Trot'])
Notes
Makes the ‘file’ column the index, and also discard the ‘Spectrum’ column (that holds all the data) for readibility
- load_spec(file, binary=True) Spectrum [source]¶
Loads a .spec file into a
Spectrum
object. Addsfile
in the Spectrumfile
attribute.- Parameters
file (str) – .spec file to load
binary (boolean) – set to
True
if the file is encoded as binary. DefaultTrue
. Will autodetect if it fails, but that may take longer.
- Returns
Spectrum
- Return type
a
Spectrum
object
Examples

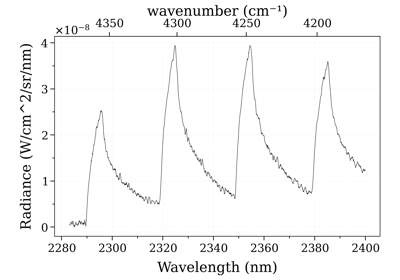

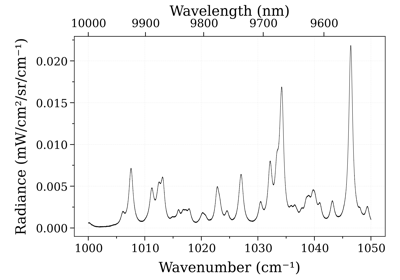

Load an experimental spectrumRemove a baseline1 temperature fitSee also
- plot_spec(file, what='radiance', title=True, **kwargs)[source]¶
Plot a .spec file. Uses the
plot()
method internally.- Parameters
file (str, or Spectrum object) – .spec file to load, or Spectrum object directly
- Other Parameters
kwargs (dict) – arguments forwarded to
plot()
- Returns
fig – where the Spectrum has been plotted
- Return type
matplotlib figure
See also
- read_conditions_file(path, verbose=True)[source]¶
Read .csv file with calculation/measurement conditions of all spectra.
File must have at least the column “file”
- Parameters
path (csv file) – summary of all spectra conditions.
- Return type
None.
- save(s: Spectrum, path, discard=[], compress=True, add_info=None, add_date=None, if_exists_then='increment', verbose=True, warnings=True)[source]¶
Save a
Spectrum
object in JSON format. Object can be recovered withload_spec()
. If manySpectrum
are saved in a same folder you can view their properties with theSpecDatabase
structure.- Parameters
s (Spectrum) – to save
path (str) – filename to save. No extension needed. If filename already exists then a digit is added. If filename is a directory then a new file is created within this directory.
discard (list of str) – parameters to discard. To save some memory.
compress (boolean) – if
False
, save under text format, readable with any editor. ifTrue
, saves under binary format. Faster and takes less space. If2
, removes all quantities that can be regenerated with s.update(), e.g, transmittance if abscoeff and path length are given, radiance if emisscoeff and abscoeff are given in non-optically thin case, etc. DefaultFalse
add_info (list, or None/False) – append these parameters and their values if they are in conditions. e.g:
add_info = ['Tvib', 'Trot']
add_date (str, or
None
/False
) – adds date in strftime format to the beginning of the filename. e.g:add_date = '%Y%m%d'
if_exists_then (
'increment'
,'replace'
,'error'
,'ignore'
) – what to do if file already exists. If'increment'
an incremental digit is added. If'replace'
file is replaced (!). If'ignore'
the Spectrum is not added to the database and no file is created. If'error'
(or anything else) an error is raised. Default'increment'
.
- Returns
fout – filename used (may be different from given path as new info or incremental identifiers are added)
- Return type
str
See also
